KemJET 9000
Our high-performance KemJET 9000 extraction system with automatic de-dusting function provides a central suction and filtration system to clean indoor air.

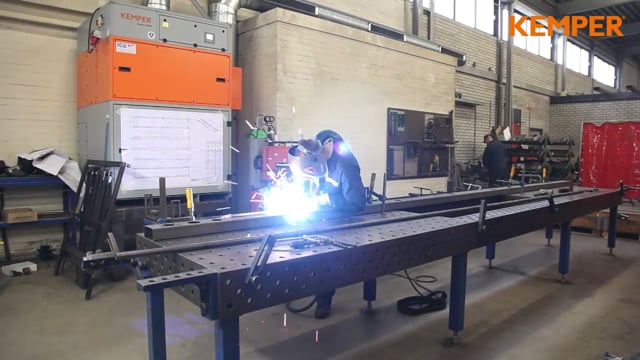

The new KemJET-Indoor Air Extraction reduces pollutant concentration in working environments where conventional point suction units are not sufficient or are difficult to use. Polluted hot air, which accumulates during welding in the ceiling area is extracted through an exhaust duct and filtered. High-performance nozzles then distribute the purified air throughout the room. Clouds of smoke dissolve quickly into clean air.
KEMPER KemJET Building Ventilation Systems are available in three different sizes and can be combined with each other as needed. This way we can find the ideal solution at each site depending on use and circumstances. What is more, each one has two filter types to choose from:
ePTFE filters are capable of gathering dangerous microscopic particles nearly entirely. That also applies to ultra-fine particles which make up the largest part of welding fumes.
The ductwork can optionally be mounted on the wall or be supported down to the floor. Just choose the appropriate mounting kit.
Get a Quote
Get A Quote
technical specs
Extraction Capacity | 5297 cfm |
Power Supply | 3 x 460v/60hz |
Filter Surface | 967 sq ft |
Measurements (Filter Unit W x D x H) | 4.5 x 6 x 9 ft |
Measurements Blowout Unit W x D x H) | 5.5 x 2.4 x 2.5 ft |
Nozzles | 12 x NW 200 |
Height | Variable |
Air Nozzles Range | ca. 38 m |
Noise Level | ca. 45 dB(A) |
Gross Weight Extraction Unit | 1745 lbs |
Total Weight | 2100 lbs |
- Large workplaces
- Frequently changed welding positions
- Spacious workplaces
- Large amounts of released smoke
More efficient use of energy
• You can keep air heated during the cold season and therefore save energy costs
• Due to the air circulation, warm air is distributed better
Flexible and easy installation
• There is no need for an extensive ducting system
• Possibility of rapid assembly and disassembly
Individually adaptable to each workshop
• The KemJET-System is easily expandable due to a modular design
• Individual solutions for nearly every working environment
• Possibility of different mounting heights by variable pipe length
• The high-performance nozzles can be adjusted by 30 degrees in any direction, and are therefore individually adjustable
High spreading range
• The high-performance nozzles are suitable for the ventilation of large buildings
KemJET Filters ISO 21904 Certified
| Part # | Description |
|---|---|
99 8800 401 | Art-Nr. ePTFE Filter |
99 8800 404 | Art-Nr. PE-M Filter |
99 8103 466 | Wall Mounting (SET) |
99 8013 479 | Supports (SET) |
